PAJERO SPORT

Pajero
Dynamic Shield Front Face Design*
Front face with Dynamic Shield design which reflected tough, modern SUV design, but still luxury in style.

* For Dakar Variant Only
Pajero
LED Headlamp
LED Headlamp with Daytime Running Lights (DRL) and Headlamp Washer* for optimum lighting.

* For Dakar Variant Only
Pajero
Unique LED Rear Combination Lamp
With unique design made new refreshment in All New Pajero Sport.
Pajero
Auto Fold Door Mirror
Auto fold door mirror with turning lamp which is more stylish and functional.
Pajero
New Alloy Wheel Design
New Design: 18inch Alloy Wheel Two Tone (Dakar) And 16inch Alloy Wheel (Exceed dan GLX).
Pajero
New Steering Wheel
4-spoke Steering Wheel with Audio Steering Switch, Multi Around View Monitor Control, MID Mode Selector, and Tilt and Telescopic Steering**.

** For Dakar 4x4 Variant Only
Pajero
Premium Comfort
Cabin and dashboard with special design which give premium and classy accent with T-Shape High Console, Wooden Accent, and many modern features.
Pajero
Luxury Comfortable Cabin
With new spacious and luxury cabin appearance, high quietness level, and leather seat*, family’s journey became more comfortable.

* For Dakar Variant Only

Exterior

Interior

Technical Specifications
*Bukalah Pada Mode Lanscape/miring Jika Dari Layar Smartphone 5 inc kebawah, untuk lebar max
Dimension & Weight
Item Dakar (4x4) AT Dakar (4x2) AT Exceed (4x2) AT GLX (4x4) MT
Overall length mm 4.785 4.785 4.785 4.785
Overall Width mm 1.815 1.815 1.815 1.815
Overall Height mm 1.805 1.805 1.805 1.800
Wheel Base mm 2,800 2,800 2,800 2,800
Ground Clearance mm 218 218 218 218
Curb Weight mm 2,030 1,935 1,910 2,000
Engine
Item Dakar (4x4) AT Dakar (4x2) AT Exceed (4x2) AT GLX (4x4) MT
Engine Type 4N15 2.4L MIVEC Turbocharged and Intercooled (EURO II) 4N15 2.4L MIVEC Turbocharged and Intercooled (EURO II) 4D56 2.5L DI Commonrail Turbocharged and Intercooled DOHC (EURO II) 4D56 2.5L DI Commonrail Turbocharged and Intercooled DOHC (EURO II)
Displacement cc 2,442 2,442 2,477 2,477
Bore x stroke mm 86.0 x 105.1 86.0 x 105.1 91.1 x 95.0 91.1 x 95.0
Compression Ratio 15.5 : 1 15.5 : 1 18 : 1 18 : 1
Max Horse Power PS/rpm 181/3500 (133 kW) 181/3500 (133 kW) 136/4000 (100 kW) 136/4000 (100 kW)
Max. Torque Kgm/rpm 43.8/2500 (430 Nm) 43.8/2500 (430 Nm) 33/2000 (324 Nm) 33/2000 (324 Nm)
Fuel Tank Capacity Litre 68 68 68 68
Min. Turning Radius Meters 5.6 5.6 5.6 5.6
Start Stop Engine Button Available Available Not Available Not Available
Performance
Item Dakar (4x4) AT Dakar (4x2) AT Exceed (4x2) AT GLX (4x4) MT
Approach Angle ° 30 30 30 30
Ramp Break Over Angle ° 23 23 23 23
Departure Angle ° 30 30 30 30
Transmission
Item Dakar (4x4) AT Dakar (4x2) AT Exceed (4x2) AT GLX (4x4) MT
Type 8 Speed AT 8 Speed AT 5 Speed AT 5 Speed MT
Gear Ratio 1st 4.845 4.845 3.520 4.313
Gear Ratio 2nd 2.840 2.840 2.042 2.330
Gear Ratio 3st 1.863 1.863 1.400 1.436
Gear Ratio 4nd 1.436 1.436 1.000 1.000
Gear Ratio 5st 1.216 1.216 0.716 0.788
Gear Ratio 6nd 1000 1000 Not Available Not Available
Gear Ratio 7nd 0.815 0.815 Not Available Not Available
Gear Ratio 8nd 0.672 0.672 Not Available Not Available
Reverse 3.825 3.825 3.224 4.220
Final Gear Ratio 3.692 3.692 3.917 4.090
Suspension & Brake
Item Dakar (4x4) AT Dakar (4x2) AT Exceed (4x2) AT GLX (4x4) MT
Front Double wishbone type, Coil spring Double wishbone type, Coil spring Double wishbone type, Coil spring Double wishbone type, Coil spring
Rear 3 link type rigid axle, Coil spring 3 link type rigid axle, Coil spring 3 link type rigid axle, Coil spring 3 link type rigid axle, Coil spring
Brake Front Ventilated Disc Ventilated Disc Ventilated Disc Ventilated Disc
Brake Rear Ventilated Disc Ventilated Disc Drum Drum
Brake Assist + Hydraulic (BA) Available Available Not Available Not Available
ABS & EBD Available Available Available Available
Tire Size Front 265 / 60R18 110H 265 / 60R18 110H 265 / 70R16 112S 265 / 70R16 112S
Tire Size Front 265 / 60R18 110H 265 / 60R18 110H 265 / 70R16 112S 265 / 70R16 112S
Steering
Item Dakar (4x4) AT Dakar (4x2) AT Exceed (4x2) AT GLX (4x4) MT
Audio Switch Available Available Not Available Not Available
Equipment
Item Dakar (4x4) AT Dakar (4x2) AT Exceed (4x2) AT GLX (4x4) MT
Seat Material Leather Seat Leather Seat High Quality Water Repellant Fabric Seat High Quality Water Repellant Fabric Seat
Height Seat Adjuster Electric Power slide seat with dual height & Reclining Function Electric Power slide seat with dual height & Reclining Function Manual seat adjuster & Reclining Function Manual seat adjuster & Reclining Function
Gear Shift Knob Leather wrap with Silver Garnish Leather wrap with Silver Garnish Leather wrap Urethane
Transfer Knob Dial Type Not Available Not Available Urethane
Type Wide 2DIN Touchscreen Audio (7.0 inch WVGA) :
- AM/FM Radio
- DVD/CD/MP3
- Bluetooth/ Ipod/Iphone/Ipad
- USB Player
- Navigation System
Wide 2DIN Touchscreen Audio (7.0 inch WVGA) :
- AM/FM Radio
- DVD/CD/MP3
- Bluetooth/ Ipod/Iphone/Ipad
- USB Player
- Navigation System
Wide 2DIN Touchscreen Audio (7.0 inch WVGA) :
- AM/FM Radio
- DVD/CD/MP3
- Bluetooth/ Ipod/Iphone/Ipad
- USB Player
- Navigation System
Wide 2DIN Audio :
- AM/FM RAdio
- CD/MP3
- Ipod/Iphone/Ipad
- USB Player
Exterior
Item Dakar (4x4) AT Dakar (4x2) AT Exceed (4x2) AT GLX (4x4) MT
Side Step Available Available Available Available
Roof Rails Available Available Not Available Not Available
Power Outer Door Mirror Retractable with Folding Function Retractable with Folding Function Retractable with Folding Function Retractable with Folding Function
Front Headlamp LED Headlamp with Autoleveling Function LED Headlamp with Autoleveling Function Halogen Projector Headlamp Halogen Projector Headlamp
Rear Combination Lamp LED Type + Reflex Reflector LED Type + Reflex Reflector with Reflex Reflector with Reflex Reflector
Daytime Running Light Available Available Not Available Not Available
Washer Headlamp Available Available Not Available Not Available
Power Tilt and Sliding Sunroof Available Available Not Available Not Available
Front Fog Lamp Available Available Available Available
High Mounted Stop Lamp LED Type LED Type LED Type LED Type

Color Option

White Pearl | Sterling Silver Metallic | Deep Bronze Metallic | Titanium Grey Metallic | Black

Pajero
Front Under Garnish
Parts Number: MZ330917
Harga: Rp 1.600.000,- *
Pajero
Rear Under Garnish
Parts Number: MZ330918
Harga: Rp 1.430.000,- *
Pajero
Tailgate Spoiler
Parts Number: MZ330926-31
Harga: Rp 1.920.000,- *
Pajero
Side Window Deflector
Parts Number: MZ330934
Harga: Rp 851.000,- *
Pajero

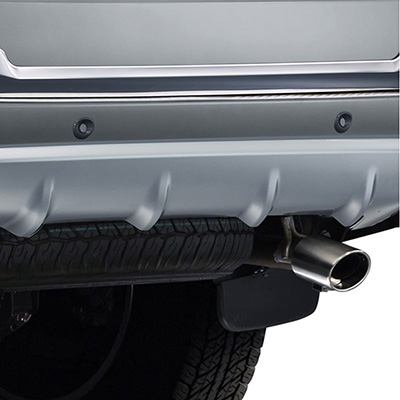

Exhaust Finisher
Parts Number: MZ330923
Harga: Rp 340.000,- *
