T120SS

Exterior

T120SS
1.5 MPi
T120SS
Completed with audio system
T120SS
Blue magnificent color
T120SS

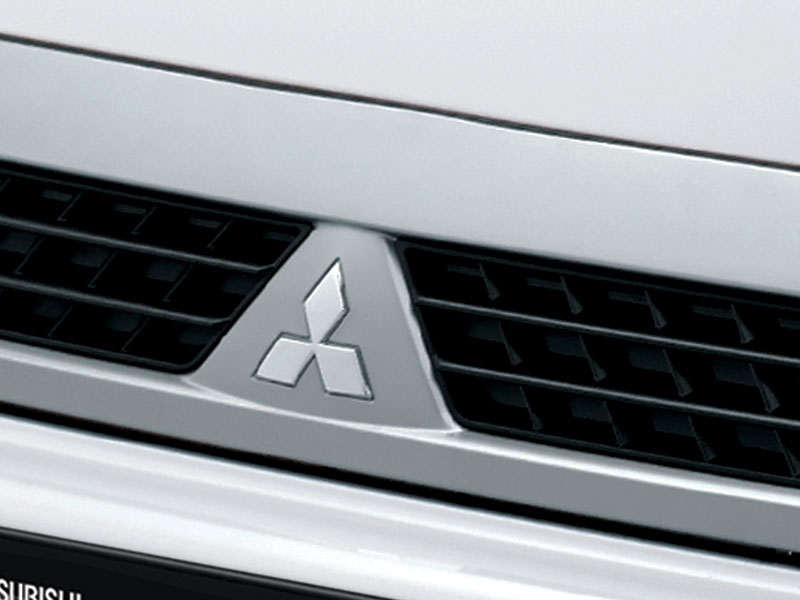

New grill
Exterior

Interior

Technical Specifications
*Bukalah Pada Mode Lanscape/miring Jika Dari Layar Smartphone 5 inc kebawah, untuk lebar maksimal
Dimension & Weight
Item 1.5 L STANDAR & FLAT DECK PU 1.5 L 3 WAY WIDE DECK BUS CHASIS
Overall length 3720 mm 3940 mm 3675 mm
Width 1560 mm 1680 mm 1560 mm
Height 1825 mm 1795 mm 1835 mm
Wheel Base 1970 mm 1970 mm 1970 mm
Min. Ground Clearance 180 mm 180 mm 180 mm
Cargo Bed Dimension
Item 1.5 L STANDAR & FLAT DECK PU 1.5 L 3 WAY WIDE DECK BUS CHASIS
Bed Interior Length 2200 mm 2335 mm -
Bed Interior Width 1480 mm 1600 mm -
Bed Interior Length 2200 mm 2335 mm -
Bed Interior Height 300 mm 350 mm -
Bed Interior Length 2200 mm 2335 mm -
Performance
Item 1.5 L STANDAR & FLAT DECK PU 1.5 L 3 WAY WIDE DECK BUS CHASIS
Min. Turning Radius 4.2 m 4.2 m 4.2 m
Engine
Item 1.5 L STANDAR & FLAT DECK PU 1.5 L 3 WAY WIDE DECK BUS CHASIS
ENGINE TYPE 4G15 - 12 valve (4 Cyl, 4 Stroke) 4G15 - 12 valve (4 Cyl, 4 Stroke) 4G15 - 12 valve (4 Cyl, 4 Stroke)
Displacement 1468 cc 1468 cc 1468 cc
Maximum Power 86 / 5750 PS(kW) / rpm 86 / 5750 PS(kW) / rpm 86 / 5750 PS(kW) / rpm
Maximum Torque 12.3 / 3750 Kg.m(N.m) / rpm 12.3 / 3750 Kg.m(N.m) / rpm 12.3 / 3750 Kg.m(N.m) / rpm
Bore x Stroke 75,5 x 82,0 mm 75,5 x 82,0 mm 75,5 x 82,0 mm
Fuel Supply Multi Point Injection Multi Point Injection Multi Point Injection
Steering
Item 1.5 L STANDAR & FLAT DECK PU 1.5 L 3 WAY WIDE DECK BUS CHASIS
Type 5 speed forth, 1 speed back 5 speed forth, 1 speed back 5 speed forth, 1 speed back
Gear 1 3.579 3.579 3.579
Gear 2 2.094 2.094 2.094
Gear 3 1,530 1,530 1,530
Gear 4 1,000 1,000 1,000
Gear 5 0.855 0.855 0.855
Back Gear 3.727 3.727 3.727
Final Gear Ratio 4.875 4.875 4.875
Chassis
Item 1.5 L STANDAR & FLAT DECK PU 1.5 L 3 WAY WIDE DECK BUS CHASIS
Steering System Rack & Pinion Rack & Pinion Rack & Pinion
Brake Front Ventilated Disc Ventilated Disc Ventilated Disc
Brake Rear Drum Drum Drum
Suspension Front Mac Pherson Strut Coil Independent Mac Pherson Strut Coil Independent Mac Pherson Strut Coil Independent
Suspension Rear Semi Eliptic Leaf Spring Semi Eliptic Leaf Spring Semi Eliptic Leaf Spring
Tank Capacity 42 Liter 42 Liter 42 Liter
Tire Size Front/Rear 165/R13-8PR 165/R13-8PR 165/R13-8PR

Color Option
  • T120SS
  • T120SS
  • T120SS
