TRITON


  • Triton
  • Triton
  • Triton

Triton

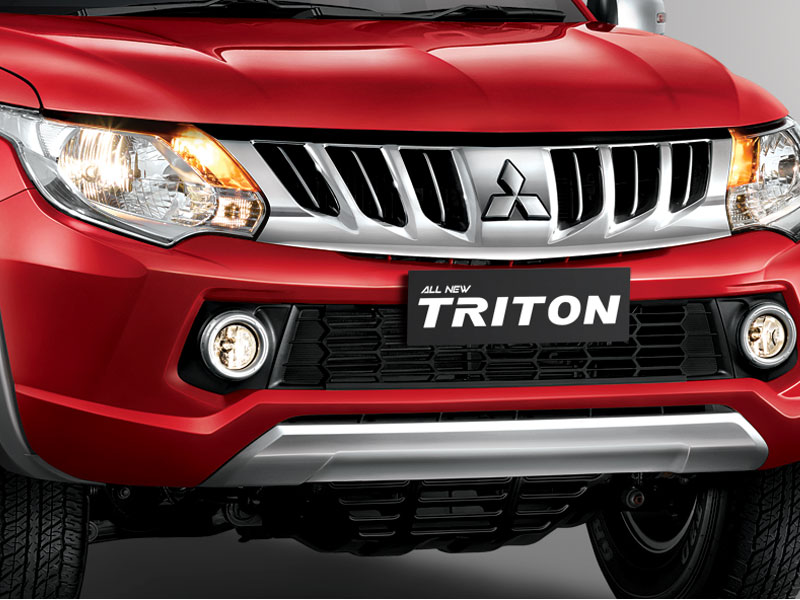

Grill Design
FNew Strong Face Grille Design of Exceed & GLS type (EV).
Triton

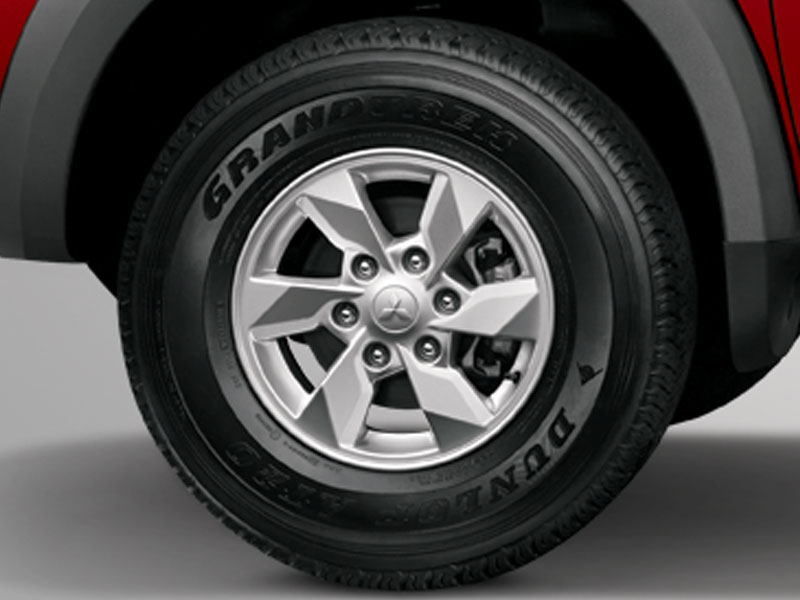

Alloy Wheel
16-inch alloy wheel with 265/70R16 tyre.
Triton
Grill Design
New Strong Face Grille of HD-X type (Double Cabin).
Triton
Alloy Wheel
16-inch alloy wheel with 245/75R16 MT tyre.
HD-X type.
Triton
Rear Combination Lamp
Find the luxury from interior side of All New Triton Exceed.
*Exceed & GLS type only
Triton
Ergonomic Seat
A high-quality ergonomic seat, designed for your comfort.
Triton
Interior
Comfortable interior with new modern design and features
Giving a high-quality interior with soundproof cabin for your comfort
*Exceed type display.
Triton
Powerful Engine
More powerful with the legendary 4D56 2.5 L 16-valve DOHC Common Rail DI-D diesel engine.
Triton

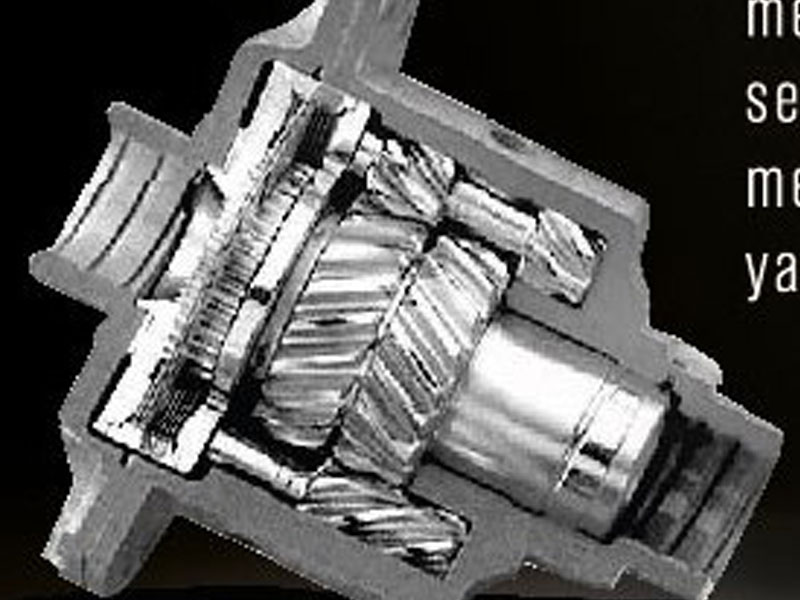

Limited Slip Differential (LSD)
Give a different response from right and left wheel, assuring the torque on both wheels.
Triton
Dual SRS Airbag
Completed with Dual SRS Airbag on the driver seat and front passanger for more safety.
Triton
Extra Space Capacity
More powerful with the legendary 4D56 2.5 L 16-valve DOHC Common Rail DI-D diesel engine.
*Double cabin type (EV)
*pengukuran tanpa bedliner
Triton
Cabin Room
Cabin room of Triton is 20mm wider that results to most spacious legroom in its class

Exterior
  • Triton
  • Triton
  • Triton
  • Triton

Interior
  • Triton
  • Triton
  • Triton
  • Triton

Technical Specifications
*Bukalah Pada Mode Lanscape/miring Jika Dari Layar Smartphone 5 inc kebawah, untuk lebar maksimal
Dimension & Weight
Item Single Cabin HDX Double Cabin HDX Double Cabin GLS Double Cabin Exceed MT Double Cabin Exceed AT
Overall length 5,080mm 5,205mm 5,205mm 5,255mm 5,255mm
Overall Width 1,785mm 1,785mm 1,815mm 1,815mm 1,815mm
Overall Height 1,795mm 1,795mm 1,795mm 1,795mm 1,795mm
OWheel Base 3,000mm 3,000mm 3,000mm 3,000mm 3,000mm
Front Tread 1520mm 1520mm 1520mm 1520mm 1520mm
Rear Tread 1515mm 1515mm 1515mm 1515mm 1515mm
Ground Clearence 220mm 220mm 220mm 220mm 220mm
Curb Weight 1,730mm 1,845mm 1,860mm 1,900mm 1,905mm
Gross Vehicle Weight (GVW) 2,760mm 2,850mm 2,850mm 2,870 2,900mm
Engine
Item Single Cabin HDX Double Cabin HDX Double Cabin GLS Double Cabin Exceed MT Double Cabin Exceed AT
Model 4D56 DI C/R T/C 4D56 DI C/R T/C 4D56 DI C/R I/C T/C 4D56 DI C/R I/C T/C 4D56 DI C/R I/C T/C
Type DOHC 16 Valve, inline 4-Cylinder Direct Diesel Injection DOHC 16 Valve, inline 4-Cylinder Direct Diesel Injection Turbocharger DOHC 16 Valve, inline 4-Cylinder Direct Diesel Injection Turbocharger DOHC 16 Valve, inline 4-Cylinder Direct Diesel Injection Turbocharger DOHC 16 Valve, inline 4-Cylinder Direct Diesel Injection Turbocharger
Displacement 2,477cc 2,477cc 2,477cc 2,477cc 2,477cc
Max Torque Output 20.4 (200) / 1500 - 3500 Kg.m(N.m) / rpm 20.4 (200) / 1500 - 3500 Kg.m(N.m) / rpm 33.1 (324) / 2000 Kg.m(N.m) / rpm 40.8 (400) / 2000 Kg.m(N.m) / rpm 40.8 (400) / 2000 Kg.m(N.m) / rpm
Bore x Stroke 91.1 x 95.0mm 91.1 x 95.0mm 91.1 x 95.0mm 91.1 x 95.0mm 91.1 x 95.0mm
Compression Ratio 17.0 17.0 17.0 16.5 16.5
Max Power Output 110 (81) / 4000 PS(kW) / rpm 110 (81) / 4000 PS(kW) / rpm 136 (100) / 4000 PS(kW) / rpm 178 (131) / 4000 PS(kW) / rpm 178 (131) / 4000 PS(kW) / rpm
Fuel System
Item Single Cabin HDX Double Cabin HDX Double Cabin GLS Double Cabin Exceed MT Double Cabin Exceed AT
Type Commonrail Commonrail Commonrail Commonrail Commonrail
Tank Capacity 75 ltr 75 ltr 75 ltr 75 ltr 75 ltr
Transmission
Item Single Cabin HDX Double Cabin HDX Double Cabin GLS Double Cabin Exceed MT Double Cabin Exceed AT
Type 5 Speed M/T 5 Speed M/T 5 Speed M/T 5 Speed M/T 5 Speed A/T
Gear Ratio 1st 3,967 3,967 4,313 4,313 3,520
Gear Ratio 2nd 2,136 2,136 2,330 2,330 2,042
Gear Ratio 3rd 1,360 1,360 1,436 1,436 1,400
Gear Ratio 4th 1,000 1,000 1,000 1,000 1,000
Gear Ratio 5th 0.856 0.856 0,788 0,788 0.716
Gear Ratio Reverse 3,578 3,578 4,220 4,220 3,224
Gear Ratio Final 4,636 4,636 4,090 3,917 3,917
LSD Mechanical type Mechanical type Mechanical type Mechanical type Mechanical type
Transfer High 1,000 1,000 1,000 1,000 1,000
Transfer Low 1,925 1,925 1,900 1,900 2,566
4 WD System Easy Select 4WD Easy Select 4WD Easy Select 4WD Easy Select 4WD Easy Select 4WD
Suspension
Item Single Cabin HDX Double Cabin HDX Double Cabin GLS Double Cabin Exceed MT Double Cabin Exceed AT
Front Type Independent Wishbone, Coil Spring, Telescopic Shock Absorber, Torsion Bar Stabilizer Independent Wishbone, Coil Spring, Telescopic Shock Absorber, Torsion Bar Stabilizer Independent Wishbone, Coil Spring, Telescopic Shock Absorber, Torsion Bar Stabilizer Independent Wishbone, Coil Spring, Telescopic Shock Absorber, Torsion Bar Stabilizer Independent Wishbone, Coil Spring, Telescopic Shock Absorber, Torsion Bar Stabilizer
Rear Type Rigid Axle, Eliptic Leaf Spring, Telescopic Shock Absorber Rigid Axle, Eliptic Leaf Spring, Telescopic Shock Absorber Rigid Axle, Eliptic Leaf Spring, Telescopic Shock Absorber Rigid Axle, Eliptic Leaf Spring, Telescopic Shock Absorber Rigid Axle, Eliptic Leaf Spring, Telescopic Shock Absorber
Heavy Duty Suspension Not Available Not Available Not Available Not Available Not Available
Brake
Item Single Cabin HDX Double Cabin HDX Double Cabin GLS Double Cabin Exceed MT Double Cabin Exceed AT
Brake Front Ventilated Disc Ventilated Disc Ventilated Disc Ventilated Disc Ventilated Disc
Brake Rear Drum Drum Drum Drum Drum
LSPV (Load Sensing Proportioning Valve) Available Available Not Available Not Available Not Available
ABS & EBD Not Available Not Available Available Available Available
Tire
Item Single Cabin HDX Double Cabin HDX Double Cabin GLS Double Cabin Exceed MT Double Cabin Exceed AT
Size Front 245 / 75 / R16 -
Size Rear 245 / 75 / R16 -
Wheel Disc 16"
Spare Wheel 245/75R16

Color Option
  • Triton
  • Triton
  • Triton
  • Triton
  • Triton
Red Solid | Deep Black Mica | Deep Black Mica | Titanium Grey Metallic | White Solid

Accessories
Triton
Front Under Cover
Parts Number: MZ330739
Harga: Rp 3.450.000,- *
Triton
Side Door Garnish
Parts Number: MZ330737
Harga: Rp 3.680.000,- *
Triton
Rear Comb. Lamp Garnish
Parts Number: MZ330751
Harga: Rp 760.000,- *
Triton
Hood Protector
Parts Number: MZ330747
Harga: Rp 1.800.000,- *
Triton
Side Window Deflector
Parts Number: MZ330748
Harga: Rp 990.000,- *
Triton
Scuff Plate
Parts Number: MZ330752
Harga: Rp 695.000,- *
Triton
Fuel Lid Garnish
Parts Number: MZ330734
Harga: Rp 414.000,- *
Triton
Sports Bar
Parts Number: MZ330755
Harga: Rp 3.120.000,- *
Triton

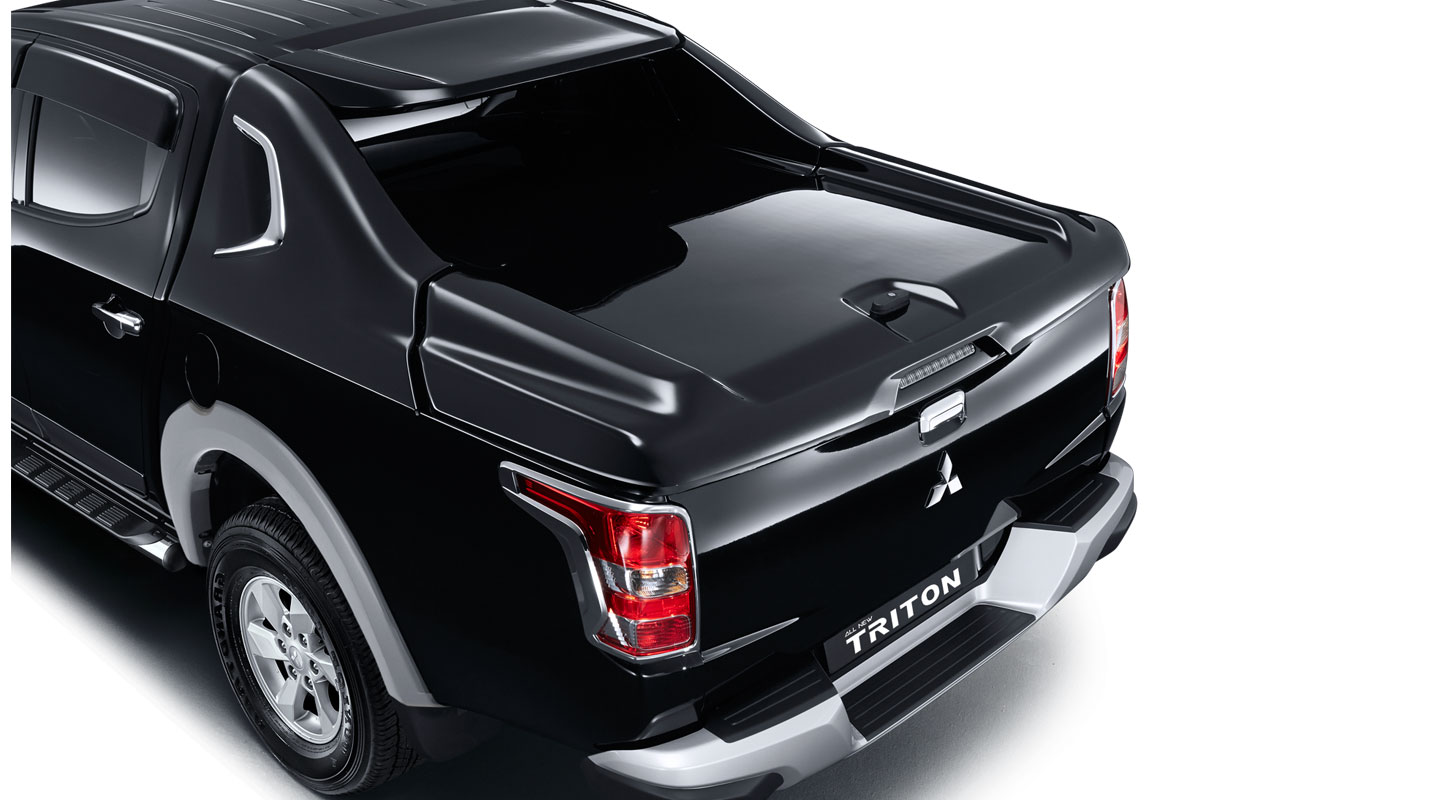

Tonneau Cover (No-Painted)
Parts Number: MZ330844
Harga: Rp 21.050.000,- *
